PI-4820D-GHigh Power POE Injector Single Gigabit Port Power Over Ethernet PoE Plus - 90W - 802.3af/at/bt - up to 100 Meters (325 Feet)

by Real HD
Sale Sale
Original price $54.99
Original price $54.99 - Original price $54.99
Original price $54.99
Current price $49.99
$49.99 - $49.99
Current price $49.99

Brand: Real HD

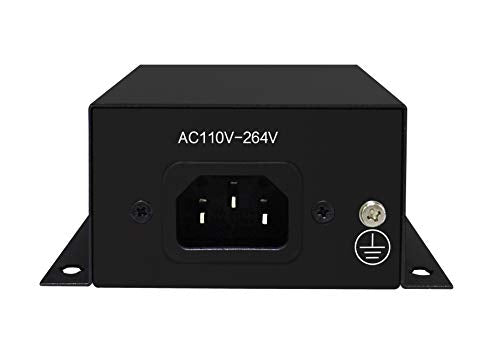

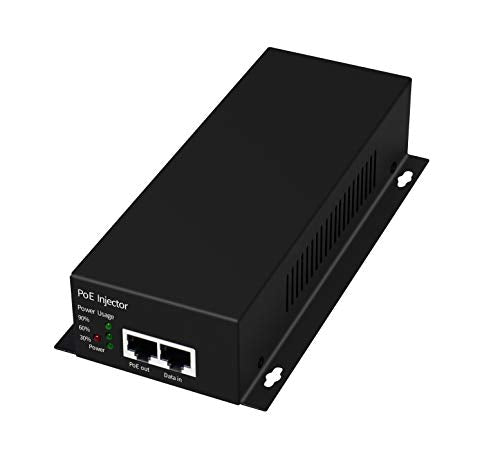

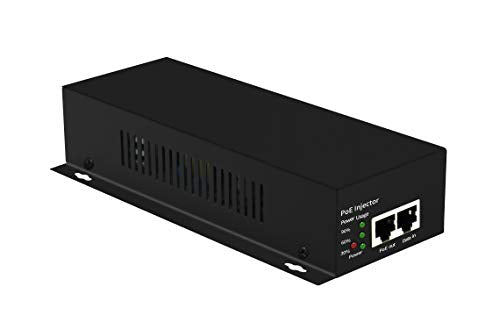

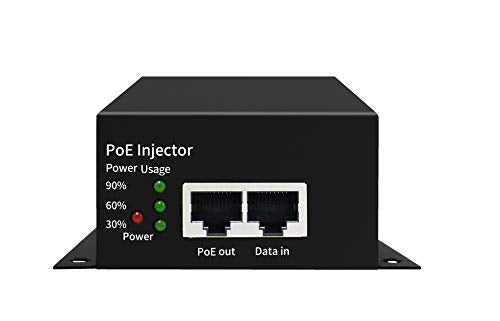

  • Interface: 2 x RJ-45, 1 x AC socket | Ethernet Data Rate: 10/100/1000Mbps
  • Compliant with 802.3af, 802.3at, 802.3bt, up to 90W Power Output, up to 300ft distance
  • Auto-Sensing Technology and Protect Non-Power Devices
  • Plug & play, no configuration is needed, simply connect a PoE network device, accommodates most installations scenarios.
  • Note: Do not support passive 24V PoE device E.g. ubiquiti access point

model number: PoE + + Injector(90W)

Details: This Power over Ethernet Injector provides a maximum of up to 90-watt power and high speed Ethernet data connection anywhere in your network infrastructure. The POE Injector is a Single-Port, Ultra Power over Ethernet Injector with a maximum of up to 90watts of power output over Ethernet cables. It is designed specifically to meet the demand for growing higher power required network equipment. The Injector delivers the Ethernet digital data with DC 50V power over the twisted pair cables as a 90-watt Power over Ethernet Injector, and the connected Ultra Power over Ethernet splitter – the POE-171S – will separate the digital data and the power into three optional outputs (12V/19V/24V DC) with distance up to 100 meters. The PoE injector uses the same cabling standard as IEEE 802.3at/af PoE. Instead of delivering power over 2-pair twisted UTP – be it End-Span (Pin 1, 2, 3 and 6) or Mid-Span (Pin 4, 5, 7 and 8), it provides the capability to source up to 90 watts of power by using all the four pairs of standard Cat5e / Cat6 Ethernet cabling. In the new 4-pair system, two PSE controllers will be used to power both the data pairs and the spare pairs. With concepts of "Easy to install”, “Plug and Play” and "Simple troubleshooting" for business and home users, the POE Injector is an all-in-one, single-port PoE+ injector with internal power supply. In the compact size housing, the POE Injector provides one 100-240V AC input socket on its front panel, two LEDs (System POWER and PoE ACTIVE ) on the top side and two RJ-45 ports (POE port and LAN port) on the rear panel. Simply plug in the Ethernet cables and power cord, and the POE Injector is ready to provide high speed network communication and ultra power PoE injector functions simultaneously with no need of software configuration.

EAN: 0722390681354

Package Dimensions: 9.7 x 7.6 x 2.4 inches
